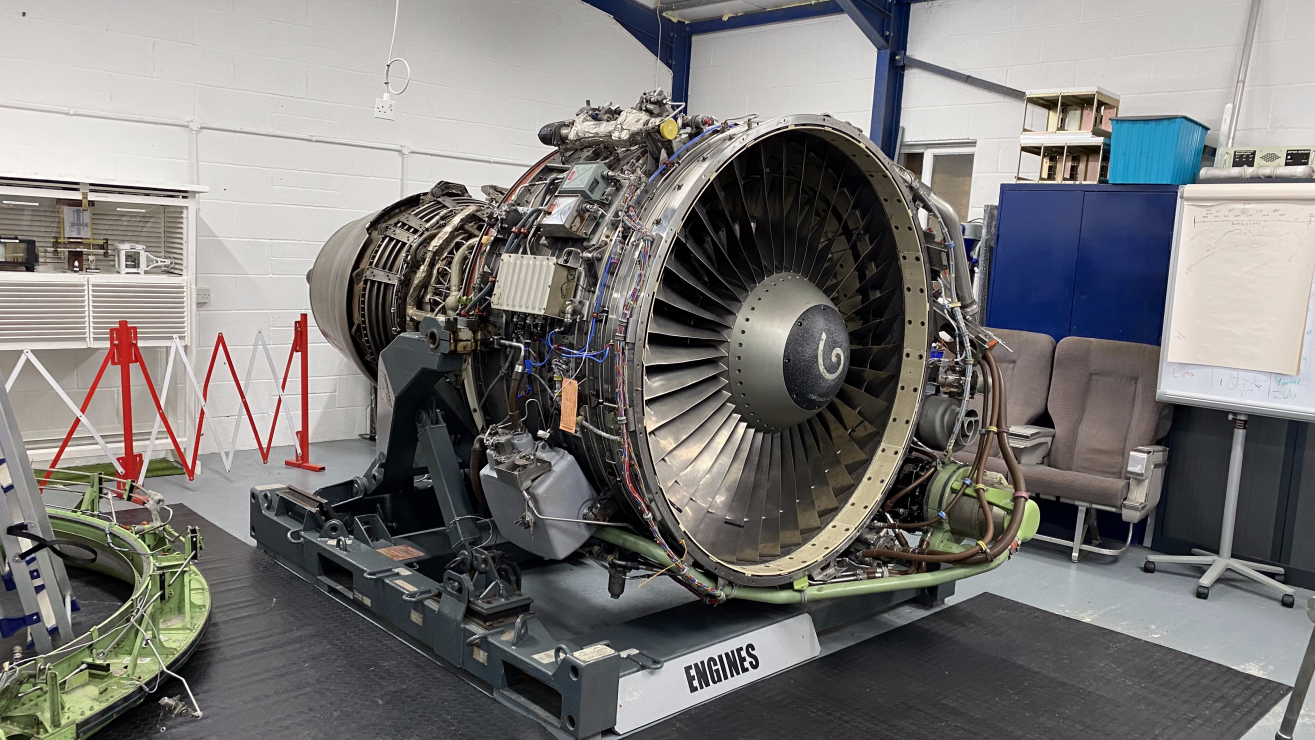

Engine Maintenance Series: CFM56 – Precision Tools for Daily Inspections and Safety

Engine Profile

Model: CFM56

Primary Aircraft:Airbus A320 family, Boeing 737 NG

Maintenance Cycle:Daily, A-Check, C-Check, Shop Visit

Key Focus: Fan blade integrity and core thermal efficiency.

The CFM56 engine, widely used in narrow-body aircraft such as the Airbus A320 and Boeing 737, is renowned for its reliability and efficiency. However, like any high-performance aerospace engine, it requires routine maintenance to ensure optimal performance and flight safety. Maintenance tasks range from daily inspections to detailed component checks, and the use of precision tools plays a crucial role in improving accuracy, efficiency, and safety.

Daily Maintenance Procedures

Routine maintenance of the CFM56 engine focuses on several key areas:

Visual Inspections: Checking fan blades, inlet, and exhaust sections for visible damage, FOD (Foreign Object Damage), or signs of oil leaks.

Fluid Levels: Monitoring oil and hydraulic fluid levels, and performing fuel/oil leak checks, and hydraulic fluids to ensure proper operation.

Sensor and Wiring Checks:Verifying the integrity of sensors and electrical connections critical for engine performance monitoring.

Performance Monitoring: Reviewing engine data logs to identify early signs of abnormal wear or inefficiency.

Daily inspections are essential for preventing unexpected downtime and ensuring the longevity of engine components.

Precision Tools in CFM56 Maintenance

Using specialized tools significantly enhances maintenance quality and reduces human error. Key categories of tools include:

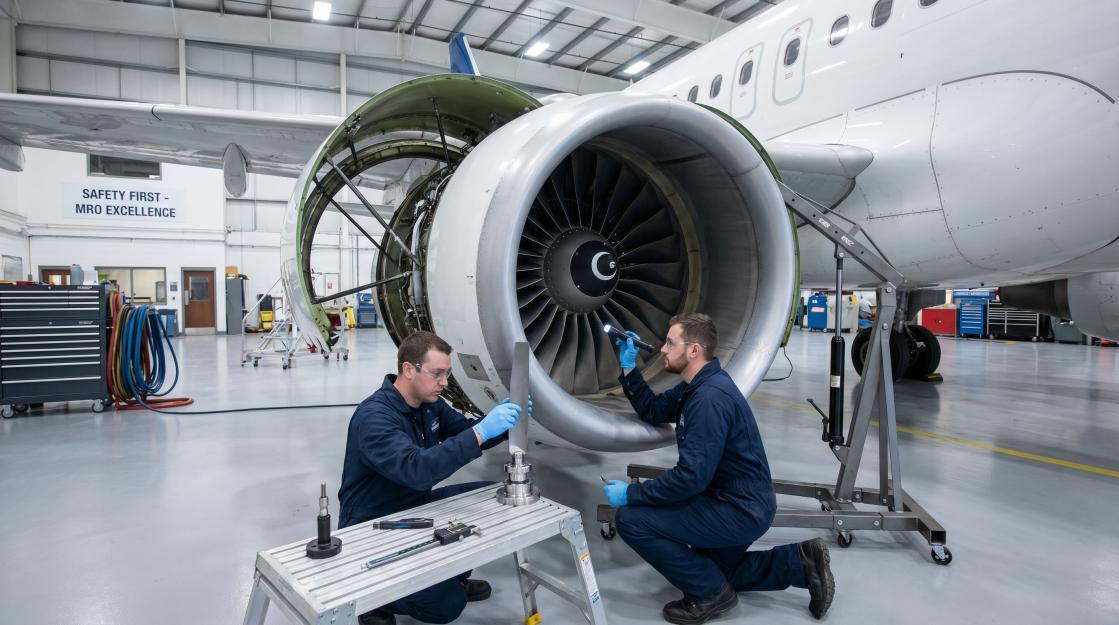

Measuring Instruments: Tools such as fan blade gages (e.g., 856A1212G11) allow technicians to accurately measure blade wear and dovetail clearances. This ensures proper fan disk seating and prevents vibration or imbalance that could lead to premature engine wear.

Torque Fixtures and Clamps: Essential for secure assembly and disassembly of critical components, these fixtures maintain correct torque specifications and component positioning.

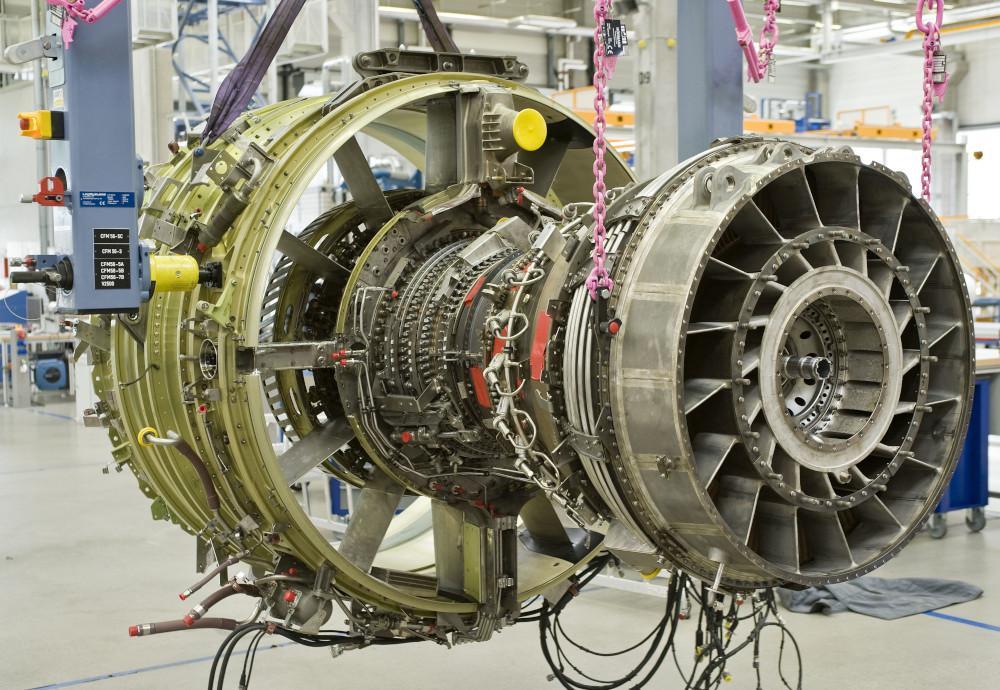

Ground Support Equipment (GSE): Engine stands, hoists, and transport supports allow safe handling of heavy components during maintenance or inspection.

These tools not only improve precision but also streamline the workflow, minimizing downtime while maintaining high safety standards.

Practical Application Examples

A common maintenance procedure involves measuring and inspecting the CFM56 fan blade. Using a precision blade gauge, technicians can achieve precision measurements down to thousandths of an inch (or microns). Without such tools, manual measurements may introduce errors, potentially affecting engine performance and safety.

Similarly, torque fixtures ensure that bolts and fasteners meet exact specifications, preventing over- or under-tightening, which can lead to component fatigue or failure.

Benefits of Tool-Assisted Maintenance

Enhanced Accuracy: Precision measurement reduces human error.

Increased Efficiency: Tools streamline inspection and assembly processes, saving time.

Safety Assurance: Proper alignment and torque control prevent component failures.

Repeatability: Standardized procedures facilitate training of new maintenance personnel.

Technical Key-Takeaways for CFM56

Critical Tool: 856A1212 Series (Fan Blade Gages).

Standard Reference: AMM (Aircraft Maintenance Manual) Chapter 71-72.

Daily Priority: Ensuring no 'shingling' (overlapping) of fan blades and verifying oil levels within the required window after engine shutdown.

CFM56 engine maintenance is a combination of routine inspections, careful monitoring, and the precise use of specialized tools. Incorporating precision instruments and ground support equipmentinto daily maintenance not only ensures compliance with industry standards but also enhances operational efficiency and flight safety.

For MRO companies and maintenance teams, investing in the right tools and training is essential for maintaining the reliability and performance of CFM56 engines.
